Allied Tractor Corporation
Skid Steers |
||||
Mowers and Brush Cutters
Rear Mower Series

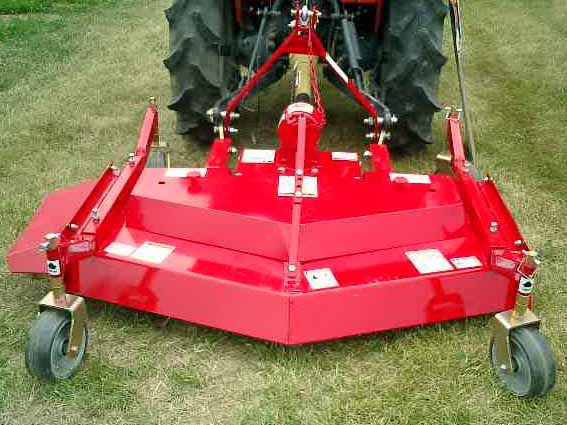

(60 Inch Pictured Below)
Versatility, simplicity and safety are the three main features of these 3 point mowers. Designed and produced with the most up-to-date technologies and the most advanced construction systems, it is ideal for use with tractors ranging between 12 and 60 HP. Available with cutting widths of 60 inch and 72 inch, it can be used for any type of grassy area from fields to golf courses, parks to motorway grass verges, lawns to sports grounds. Four extra-large wheels always ensure a precise cut, which may range from 1 inch-5 inches. Toughness and compactness are just two more features
that apply to this adaptable, easy-to-handle machine.
Easy-to-adjust cutting height, which can be altered simply by shifting the spacers mounted on the fork shaft, its 3rd anchoring point, which "floats" to allow the machine to follow the contour of the ground, and its easily-regulated belt tension.
Standard hitches mounted on the mower mean that it can be used with virtually any type of tractor.
Feature |
60" Deck (Side Discharge) |
60" Deck (Rear Discharge) |
72" Deck (Rear Discharge) |
Cutting width |
60 inches | 60 inches |
72 inches |
Number of blades |
3 | 3 |
3 |
Lowest cutting height |
1 inch | 1 inch |
1 inch |
Highest cutting height |
5 inches | 5 inches |
5 inches |
Hitch type |
floating/category one 3 point | floating/category one 3 point |
floating/category one 3 point |
Recommended HP |
17-28 | 17-28 |
22-42 |
Wheels |
4 (solid type for no flats!) | 4 (solid type for no flats!) |
4 (solid type for no flats!) |
Deck Thickness | .142 (Approx. 9 Gauge) | .152 (Approx. 9 Gauge) | .181 (Approx. 6 Gauge) |
Drive line |
6 spline 1 3/8" adjustable | 6 spline 1 3/8" adjustable |
6 spline 1 3/8" adjustable |
Deck baffles |
Yes | Yes |
Yes |
Approx. weight (shipping) |
550 | 575 |
625 |
Shipping dimensions (LWH) |
63-38-23 | 63-38-23 |
76-39-25 |
NOTE: All Specifications subject to change.

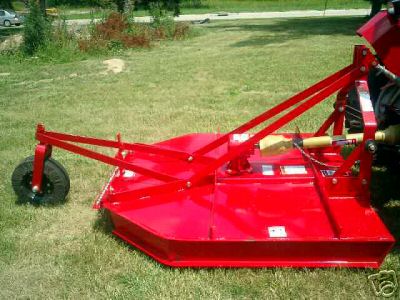

Rear Brush Cutter Series
Versatility, simplicity and safety are the three main features of these 3 point Brush Cutetrs. Designed and produced with the most up-to-date technologies and the most advanced construction systems. Available with cutting widths of 60 inch and 72 inch. They can be used for any type of grassy area from fields, parks and motorway grass verges to lawns, etc..
Standard hitches mounted on the brush cutters mean that they can be used with virtually any type of tractor.
Feature |
Brush Cutter with 60” Deck |
|
|
Cutting Width |
60 Inches |
72 Inches |
|
Blades |
Hinged |
Hinged |
|
Lowest Cutting Height |
2 Inches |
2 Inches |
|
Highest Cutting Height |
12 Inches |
12 Inches |
|
Hitch Type |
Floating / Category One 3 Point |
Floating / Category One 3 Point |
|
Recommended HP |
22-35 |
22-35 |
|
Wheels |
One (Solid type for NO flats) |
One (Solid type for NO flats) |
|
Drive Line |
6 Spline 1 3/8” adjustable |
6 Spline 1 3/8” adjustable |
|
Approx. Weight (shipping) |
570 |
570 |
|
Shipping Dimensions (LWH) |
63-38-23 |
63-38-23 |
|
Slip Protection |
Shear Pin / Clutch Optional |
Shear Pin / Clutch Optional |
|
Discharge |
Rear with Chains |
Rear with Chains |
