Allied Tractor Corporation

Loaders

A VARIETY OF MODELS AVAILABLE-RUGGED CONSTRUCTION WITH SUPERIOR LIFT CAPACITIES AND HEIGHTS TO FIT EVERY NEED.

---

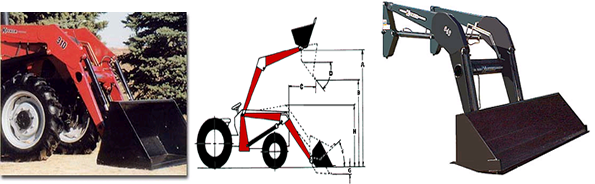

SPECIFICATIONS	110	155/160	175	210	235/245	310/345	400	565	600	645
TYPE TRACTOR	2WD OR FWA	2WD OR FWA	2WD OR FWA	2WD OR FWA	2WD OR FWA	2WD OR FWA	2WD OR FWA	2WD	2WD OR FWA	2WD OR FWA
TRACTOR HP	14-25	15-45	15-35	30-60	30-60	45-90	60-150	60-160	90-180	90-180
MAXIMUM LIFT HEIGHT	6'10"	8'5"	8'5"	10'3"	10'7"	11'7"	12'	12'8"	13'10"	14'6"
CLEARANCE: BUCKET DUMPED	5'2"	6'7"	7'11"	8'4"	8'2"	9'2"	9'1"	10'3"	11'1"	11'8"
REACH AT MAX HEIGHT	15"	21"	16"	16"	24"	25"	35"	26"	21"	36"
MAX.  DUMP ANGLE	45 º	50 º	56 º	36 º	43 º	40 º	54 º	50 º	51 º	45º
BUCKET ROLLBACK	27 º	18 º	17 º	17 º	20 º	29 º	22 º	35 º	25 º	30 º
HEIGHT IN CARRYING POSITION	3'7"	4'9"	4'11"	5'	5'7"	5'11"	6'8"	5'6"	6'7"	6'11"
DIGGING DEPTH	4"	5"	5"	8"	5"	4"	12"	8"	11"	6"
BREAKAWAY CAPACITY	1300 LBS.	2900 LBS.	2200 LBS.	4000 LBS.	4000 LBS.	4300 LBS.	6000 LBS.	6150 LBS.	6000 LBS.	7900 LBS.
LIFT CAPACITY	1000 LBS.	1500 LBS.	1200 LBS.	2750 LBS.	2750 LBS.	3100 LBS.	4000 LBS.	4000 LBS.	4000 LBS.	5000 LBS.



---
