Generators

15 KW 20 KW 24 KW

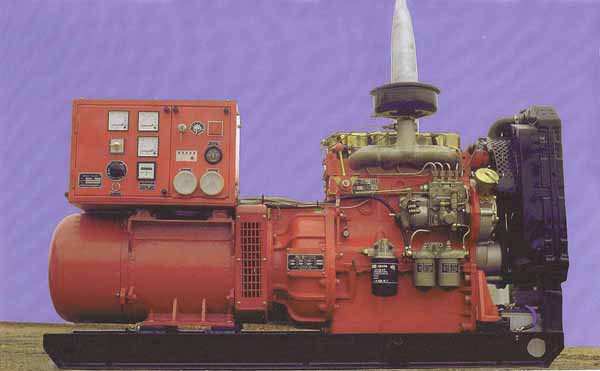

Allied is proud to introduce engine-generators to its fine line of products. Picking the 15 KW, 20 KW or the 24 KW as you alternate the source of electrical power will assure you of a ready source of steady power for years to come. Our skid mounted generators have the finest continuous duty diesel engines and components. These generators are a brushless design powered by a direct drive.

See the chart below of common household items watt uasges. This can give you an idea of what you may be able to power with an Allied generator

Average Watt Usages
Furnace (gas) (oil)
1500 watts
Coffee Pot
1000 watts
Electric Stove with one element in use
1700 watts
Television
275 watts
Refrigerator
2000 watts
Microwave
1200 watts
Eight 40 Watt Lights
320 watts

See the table below for further specs on Allied generators

Engine Generators 15kw-24kw
Model 15 kw 20kw 24kw
Engine HP 33 hp 44 hp 44 hp
Engine cylinders 3 4 4
Engine displacement 150 cu. Ins. 199 cu. In. 199 cu. In.
Engine speed (RPM) 1800 1800 1800
Combustion system Direct injection Direct injection Direct injection
Cooling Liquid cooled Liquid cooled Liquid cooled
Staring system 12 V starter 12 V starter 12 V starter
Battery cold cranking CCA 685 CCA 1000 CCA 1000
Battery Optional Optional Optional
Fuel tank 4 gallon Optional Optional Optional
Glow plugs Yes Yes Yes
Decompression lever Yes Yes Yes
Oil, temp., amp gauges Yes Yes Yes
Amp/cycles meter Yes Yes Yes
Generator
Generator type Brushless Brushless Brushless
Drive system Direct Direct Direct
Excitation system AC-rotating bridge AC-rotating bridge AC-rotating bridge
Electricity frequency 60HZ 60HZ 60HZ
Output voltage 120/240/480 120/240/480 120/240/480
Max. AC output 17.5 kw 22.5 kw 26 kw
Continuous AC output 15 kw 20 kw 24 kw
Phase single or three single or three single or three
Circuit breaker 45 amps 60 amps 72 amps
Configuration Y Y Y
Power unit
Skid mounted Single skid Single skid Single skid
Engine mounting Shock absorber Shock absorber Shock absorber
Shipping weight 2050 lbs. 2100 lbs. 2100 lbs.
Shipping length 90" 90" 90"
Shipping Width 34" 34" 34"
Shipping height 46" 46" 46"
Dry weight 1810 1870 1870
Actual Length 71" 72" 72"
Actual width 24" 24" 24"
Actual height 38" 38" 38"
Approx. max. amps @ 3 phase 240 V 48 54 72
Approx. max. amps @ 3 phase 480 V 24 27 36
Approx. fuel consumption 50% load .68 gla .70 gal .70 gal
Approx. fuel consumption 75% load .99 gal 1.05 gal 1.05 gal
Approx. fuel consumption 100% load 1.3 gal 1.4 gal 1.4 gal
Suggested List Price
$5,750.00 $6,800.00 $7,800.00

Call for current specials and pricing!! (440)582-0111

Note: Pricing, features and specifications subject to change without notice.
