Home

Attachments

Scraper Blades

  • 4 Foot
  • 5 Foot
  • 6 Foot

3 Point Scraper Blades. Moldboard has adjustable reverse and forward positions. Replaceable high-carbon steel scrape blade. Has category 1 hitch pins.

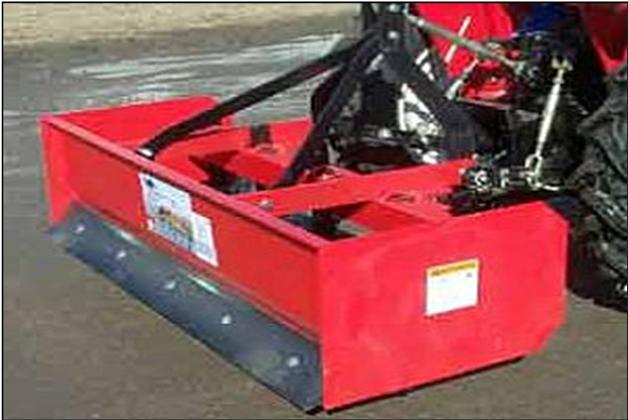

Box Blades

  • 4 Foot
  • 5 Foot
  • 6 Foot

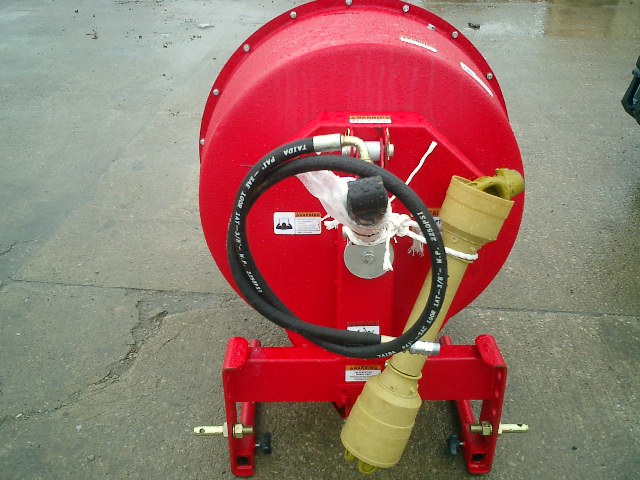

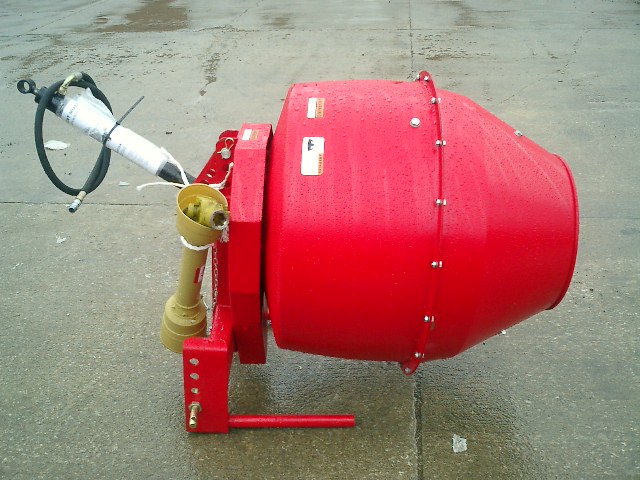

3 Point Cement Mixers

  • 5 Cubic Foot Capacity

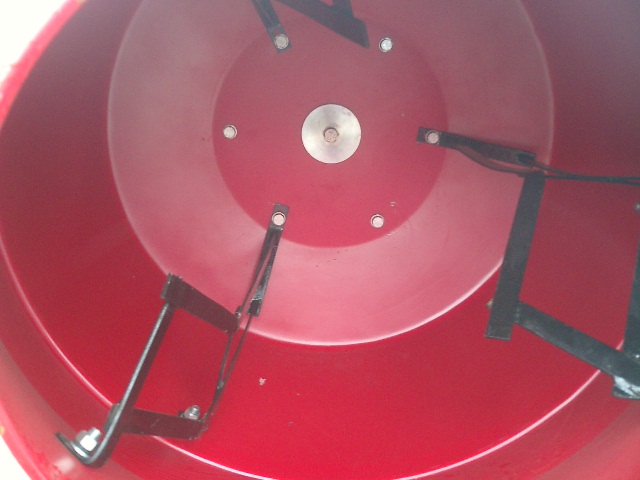

  • 2 Piece Steel Drum Construction with internal paddles for uniform mixing
  • Hydraulic Top link Cylinder provides positive dump control
  • Chain Driven Mixing Drum
  • Category One hitch
  • 3 Point Attachment
  • PTO driveline Shaft included
  • Easy to use versatile design, well built at a very affordable prcie

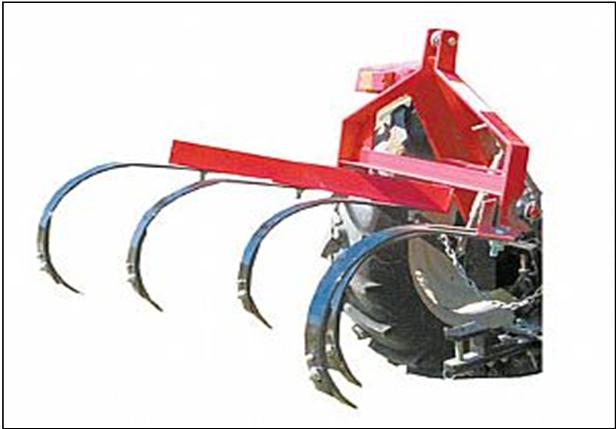

Cultivators

  • 6 Reversible Heat treated shovels
  • Adjustable Shank Width
  • Category One Hitch
  • 3 Point Attachment
  • Easy to use versatile design, well built at a very affordable prcie

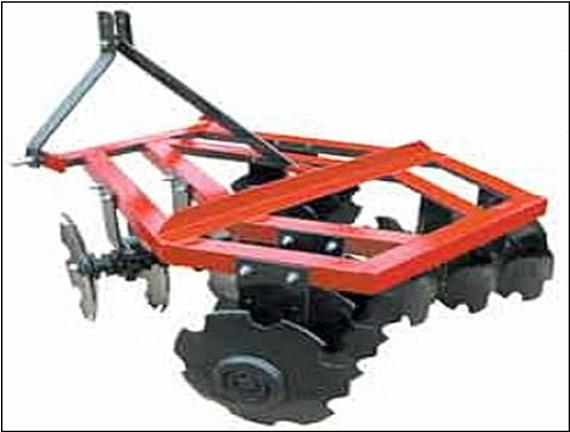

4 Foot Disc Harrow

  • 12 Discs
  • Category One Hitch
  • 3 Point Attachment
  • Easy to use versatile design, well built at a very affordable price

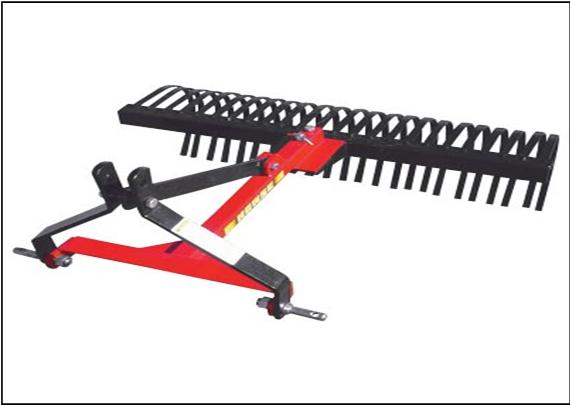

Landscape Rake

  • Heat Treated 5/16" Spring Steel tines
  • Rotates for angular and reverse settings
  • Hydraulic Top link Cylinder provides positive dump control
  • 4 Foot Raking Width with 6 tines per foot
  • Category One hitch
  • 3 Point Attachment
  • Easy to use versatile design, well built at a very affordable prcie

3 Point Forklift Attachment



  • Fits category one 3 point system (will fit category 2 & 3 with the $25.00 adapter kit).
  • Hydraulic cylinder is 2 inch bore, by 46.25 inches with 36 inch stroke
  • Can work off of your existing hydraulic system if you have at least 4 gallons per minute. If you do not have available hydraulics and a valve, a valve/pump reservoir kit ($550.00) is available and it works off of your PTO.
  • Color: black only
  • Minimum size tractor: 30 HP with front counter weights if needed (not supplied)
  • Shipping height 57 inches
  • Lift capacity varies by your tractors capability, maximum is 2,600 lbs.
  • Shipping width 50 inches
  • Fork length 53 inches
  • Shipping depth 72 inches
  • Fork Height 2 inches
  • Shipping weight of the unit empty 670 lbs
  • Fork width 4 inches at front 5.25 at rear (tapered fork)
  • Tilting Cylinder
  • Outside width of forks fully closed 10 inches
  • Approx. 58” long forks
  • Outside width of forks fully widened 47 inches
  • Hydraulic Operation- Oil Reservoir, dual valave, cylinder and hydraulic pump are included
  • Fork lift height varies by your tractors capability, average is 60 inches lift height
  • Easy to use versatile design, well built and at a very affordable price
